High Efficiency Automated Storage System AS/RS For Logistics Center

FOB Reference Price:Get Latest Price
US $1-100 / Sets | 5 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Luckyroc
Model Number:
Selective
Type:
AS/RS
Material:
Steel
Feature:
Corrosion Protection
Use:
Warehouse Rack
Certification:
ISO9001
Depth:
1.5-2.5mm
Weight Capacity:
500-4000kg/level
Width:
as requested
Height:
as requested
Color:
as requested
Finish:
Color Powder Coated
Supply Ability
Supply Ability:
5000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
poly bags and reinforced with straps
Port
xiamen port
Lead Time :
15~30day after receive deposit
Product Description



Product Description

1.Racking

1).AS/RS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure.



2).Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer.



3). AS/RS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

2. Stacker

Structural feature:



1).Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; all the way tracing technology by information transferring;



2). electric components are imported from abroad; touching screen interface for easy operation; making manual, semiautomatic, automatic and linkage control come true; used in many situations by combining with other logistics equipment.





3 .Conveying system



Structural feature:



Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.



Specification:







4. Controlling system



Structural feature:



Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller can operate all conveyors offline, doing conveying of goods automatically.



Please refer to the attached drawing for details of conveying system







5. WMS System



Hardwares of WMS System: star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.







Softwares of WMS System:



Operating system: WINDOW 2000X SEVER



Data-base: MS SQL SEVER 2000X



Warehouse management software: WMS



Equipment controlling software: ECS



Bar code management software: RFS







6.  Other related equipment



Other related equipment include switching cart, rail cart, O/R table, automatic guided vehicle, auto-picking system, electronic label, pallet lift and so on.

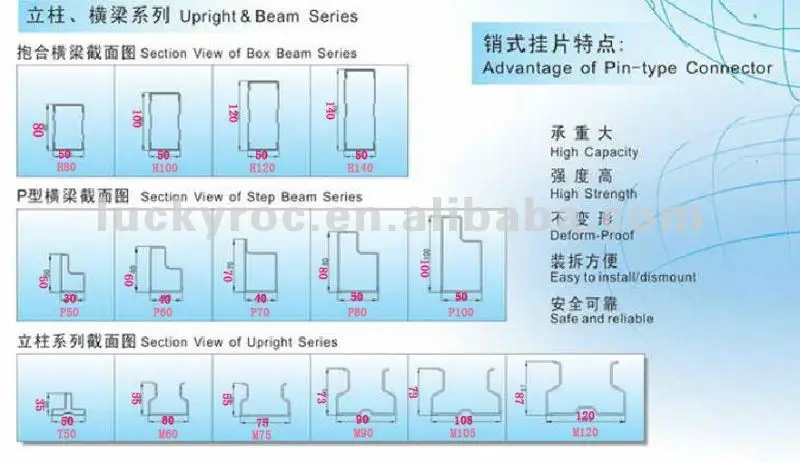

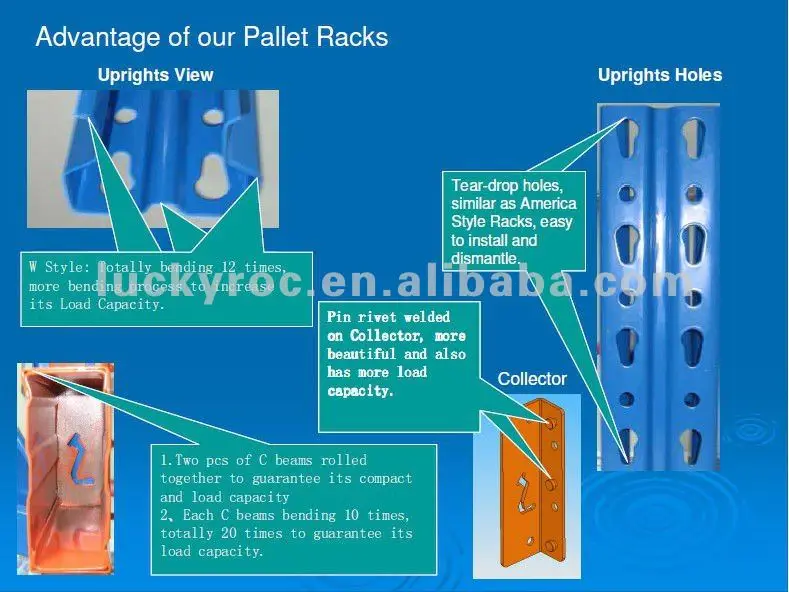

Our beams and Uprights Series

Packaging & Shipping

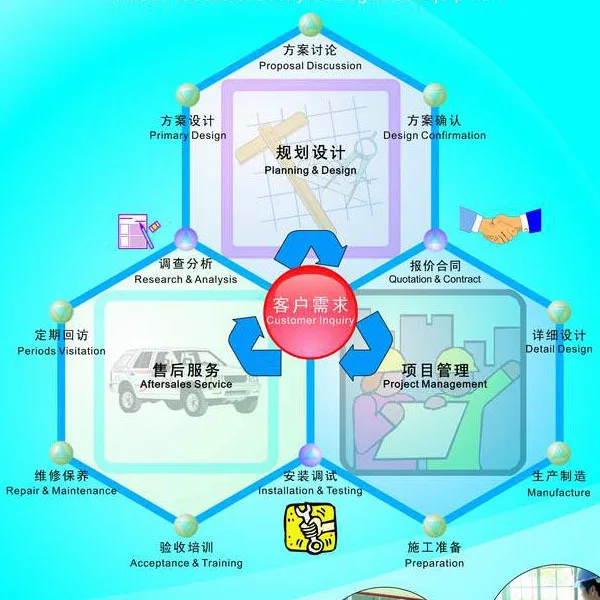

Our Services

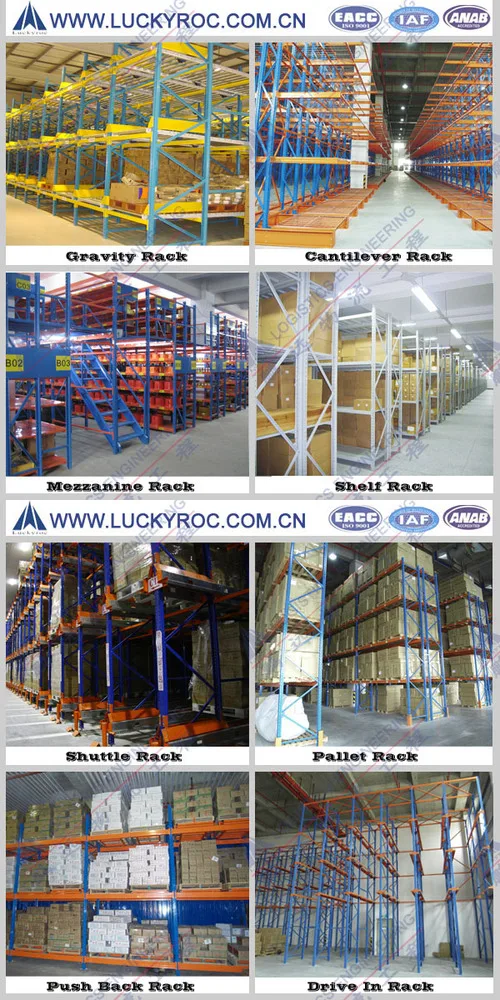

1) We can help you desigh effective industrial racking systerm solutions, including: pallet racking, mezzanine, cantilever racks, flow racks, stacking racks, steel pallet etc.



2) When your warehouse, distribution center or production area needs warehouse storage racks, we can help you find the best solution at the best price.



3) We can help you with precise layout and specifications



4)  We help you reduce material and storage costs, opitmize your warehouse space



5)  Expert assistance, free installation instruction, quick after sales service

Company Information



Xiamen Luckyroc is a professional logistics engineering company specializing in the development, improvement, manufacturing, sale, installation and commission of storage and logistics equipment. We are one of the most professional manufacturer of warehouse racks in China for more than 15 years. It has set up owned modernize manufacturing factory with many advanced rolling line and automatic powder coating line. Our customers include distribution centers, manufacturing facilities, large-scale retail and home improvement outlets, industrial warehouses and assembly operations.Our products ave passed ISO9001 Certificate. Warmly welcome to contact us for details. Thank you
